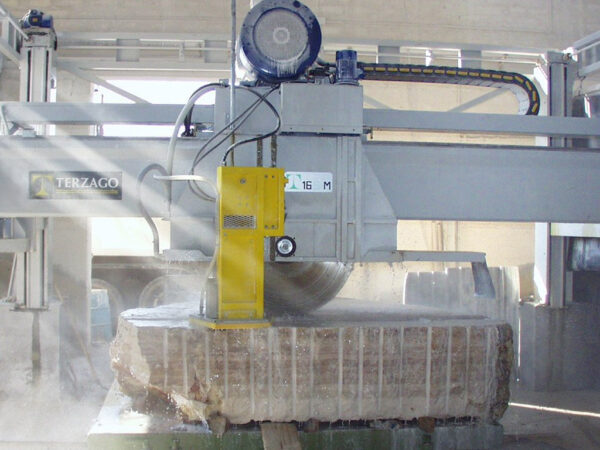

T14 SM – T16 SM Block Cutter

Block Cutters T14 SM – T16 SM.

As a tradition Terzago, the block cutters are built with dimensional generosity, with a strong cast iron bridge for a time performance of undisputed length.

Built-in the four columns frame and in the two columns frame.

For marble and granite, mono or multi discs

Categories: Block Cutters, Terzago Macchine
  • Description
  • Technical Specifications
  • Images

Description

  • Block cutter with the automatic cycle for cutting marble.
  • Heavy-duty type for transforming blocks of marble and similar stone into strips. Built-in cast iron on four columns. Connecting beams and over-size bridge in cast iron.
  • The working speed of the electrically powered blade-head unit can be regulated.
  • Hydraulic opening/closing of the horizontal blade with a dedicated line.
  • Transverse bridge movement is electric with a rack/pinion system, running on interchangeable levels and positioning with encoder.
  • Vertical movement with four precision screws mounted on columns with four worm screws. Four counter-screws prevent accidental falling of the bridge. One-speed step-cutting motor for rotation of screws synchronized by the connecting shaft; encoder for positioning.
  • The main transmission by high-performance tracks with the oil-bathed gearbox. Shaft rev. changes by pulley Motorised block carriage.
  • Centralized lubrication. Water-tight electrical cabinet.
  • Control panel with keyboard and real-time display of operator instructions, alarms, and operating parameters.

Technical Specifications

Technical Specifications T14 SM T16 SM
Blade longitudinal stroke mm 4000 4000
Useful cutting stroke with 1000 mm. blade mm 3500 3500
Disc vertical stroke mm 2200 2200
Bridge translation mm 2800 2800
Vertical disc diameter – max. mm 1400 1600
Horizontal disc diameter – max. mm 400 400
Depth of vertical cuts – max. mm 510 610
Cutting thickness – max. mm 80 80
Blade shaft diameter mm 80 80
Avail. space to assemble blades mm 105 105
Blade motor power KW 110 110
Horizontal disc motor power KW 19 19
Total auxiliary motors power KW 7 7
Adjustable slide forward speed m/min 0 – 17 0 – 17
Water consumption at 3 bar l/min 250 300
Weight KG 13500 13800

Standard Equipment T14 SM T16 SM
N° 1 Pulleys – diam. mm 200
220
260
260
310
360
For different blade speed/diam. mm 800
1300
1000
1600
N° 1 Motorized carriage (without tracks) mm 2100×2600 2100×2600
N° 2 Pair of flange x blade diameter mm 280-350 280-370
N° 1 Set of spacers diameter mm. 280 (thickness on request)
N° 1 Photocell safety barrier

Optional Equipment
Rotating block holding carriage
