Forma

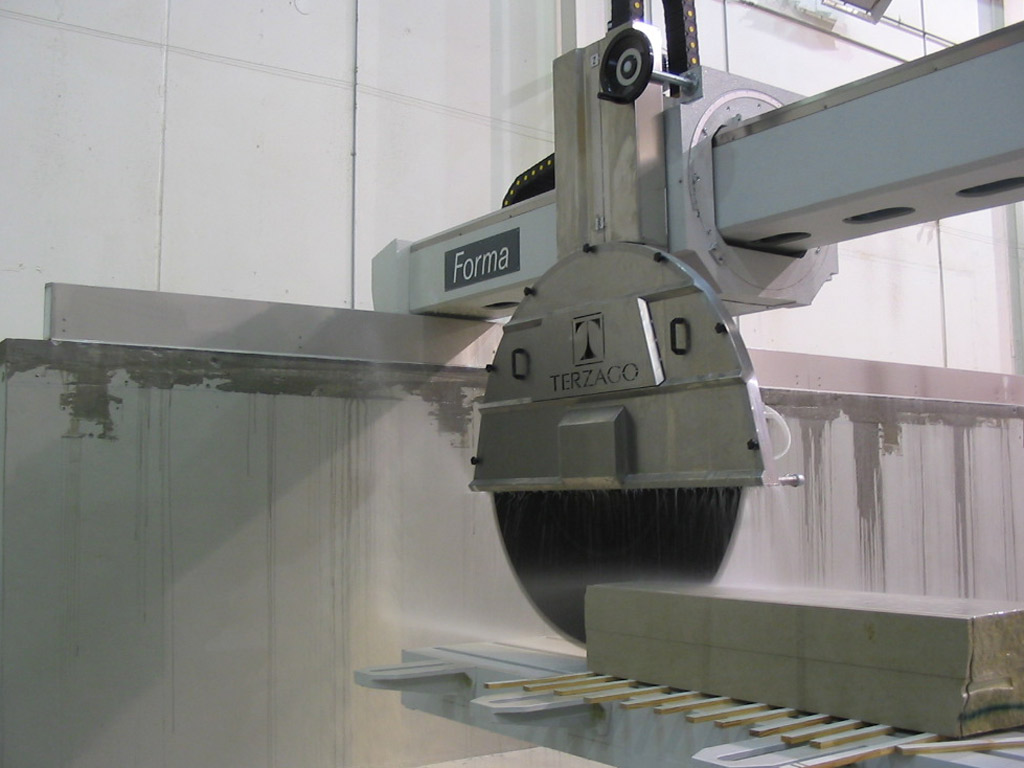

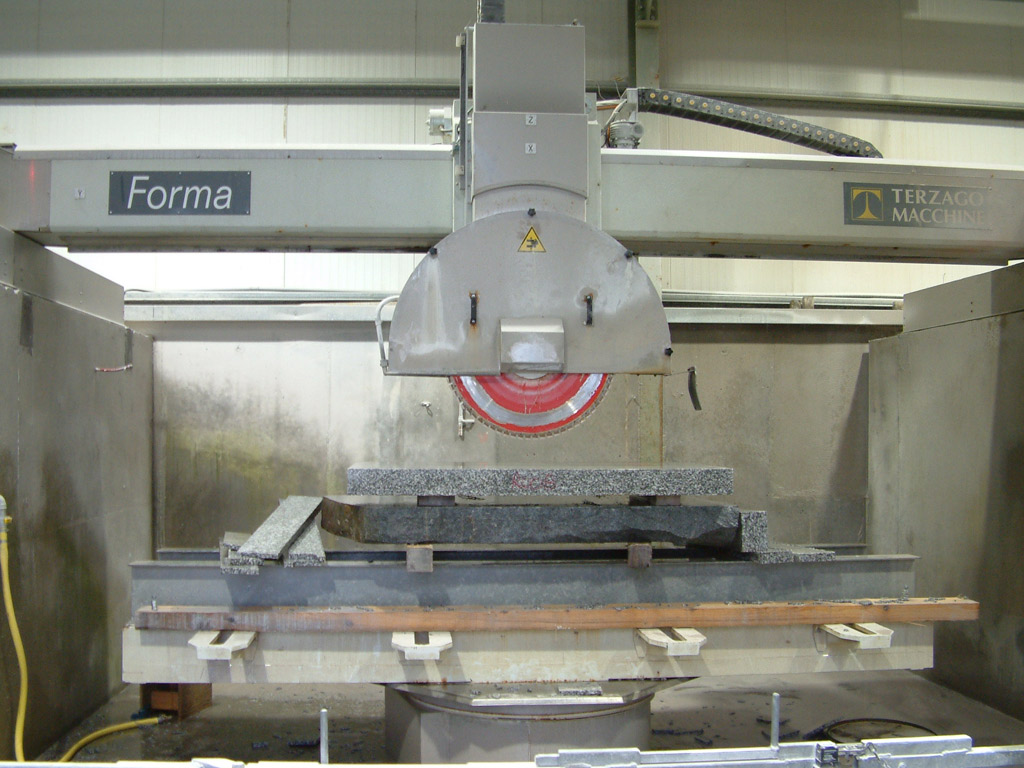

Bridge Saw With CNC.

Machine for all handicraft and industrial laboratories for processing marble and granite.

Disc diameter up to 1.200 mm, management of 4 axes, head inclination motorized.

CNC for programming slabs cut, linear, concave, and convex shaping, honing of shapes with side of the disc, circular and interrupted cuts.

Categories: Bridge Saws, Terzago Macchine
  • Description
  • Technical Specifications
  • Images
  • PDF

Description

  • Machine suitable for both small and large workshops for marble/granite.
  • Bridge mainframe/table in cast iron for stability / minimum vibration/greater machine life.
  • Long-lasting stainless steel protective covering.

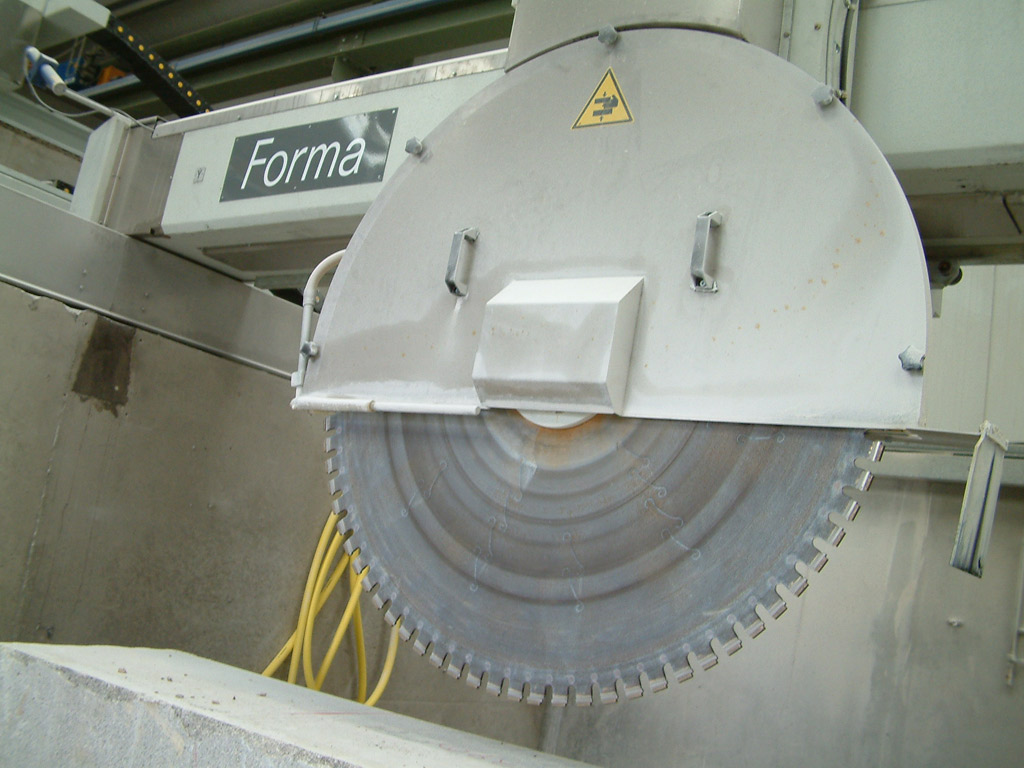

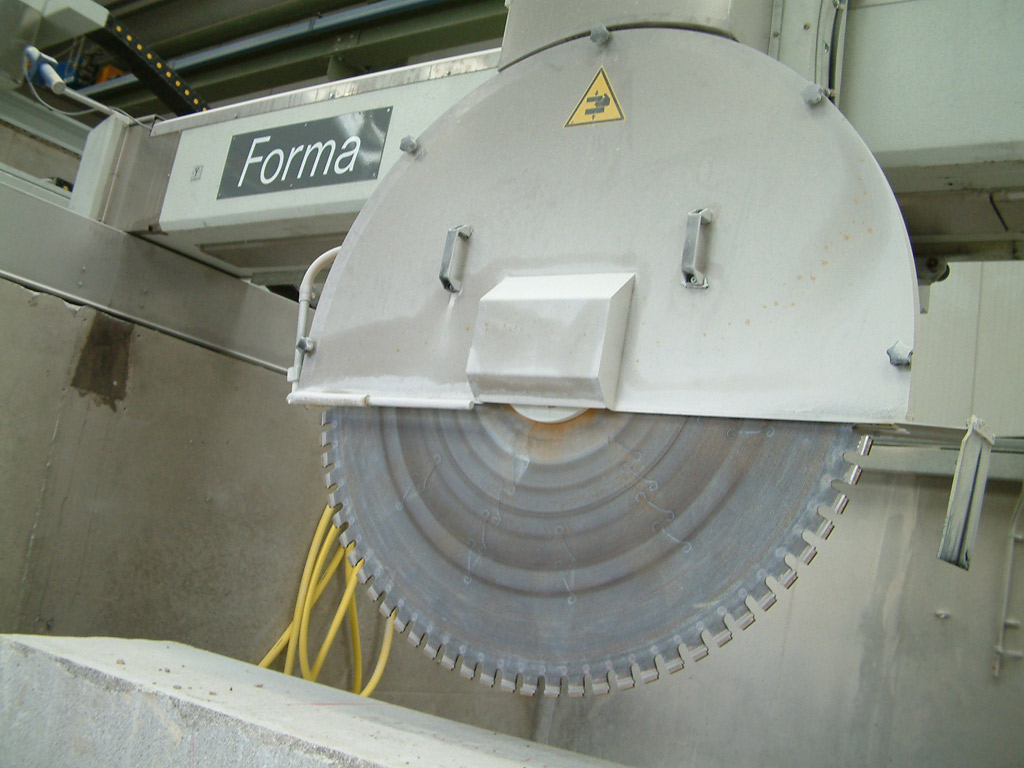

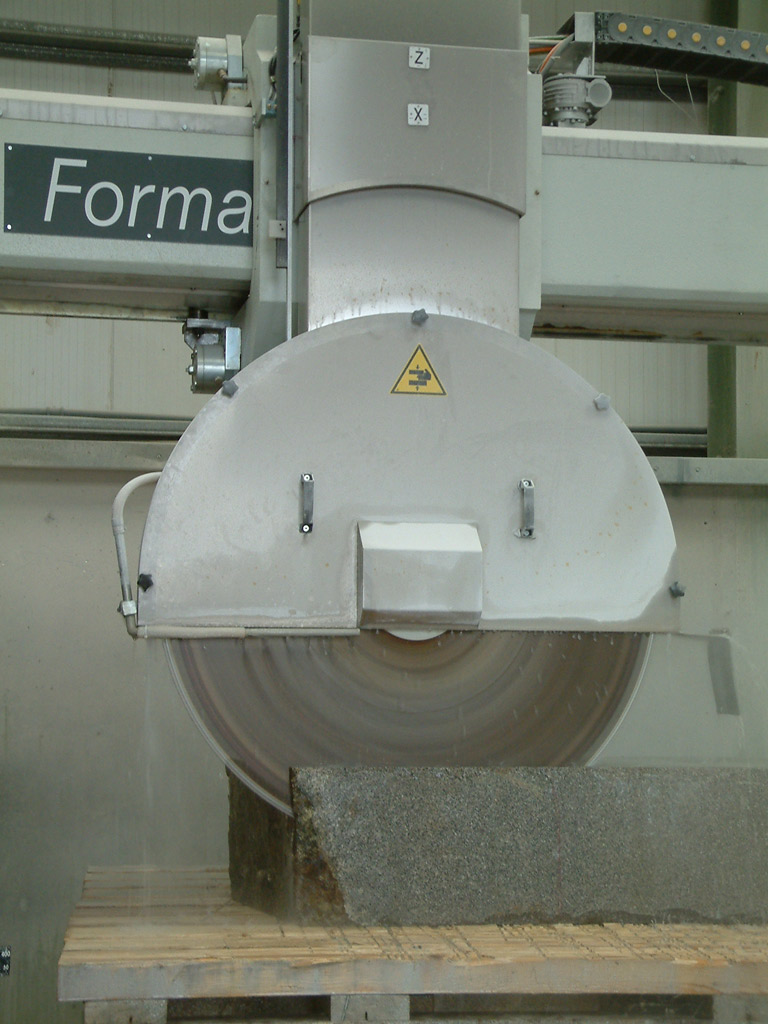

  • Small-dimension motor connected directly to blade, with the inverter.
  • Blade unit/bridge action electronically controlled on bearings, by the encoder.
  • Head vertical action with auto-braking motor, controlled by the encoder on the prismatic guide.
  • Motorized rotating bench with auto-positioning 0° – 360°; blocking with hydraulic brakes.

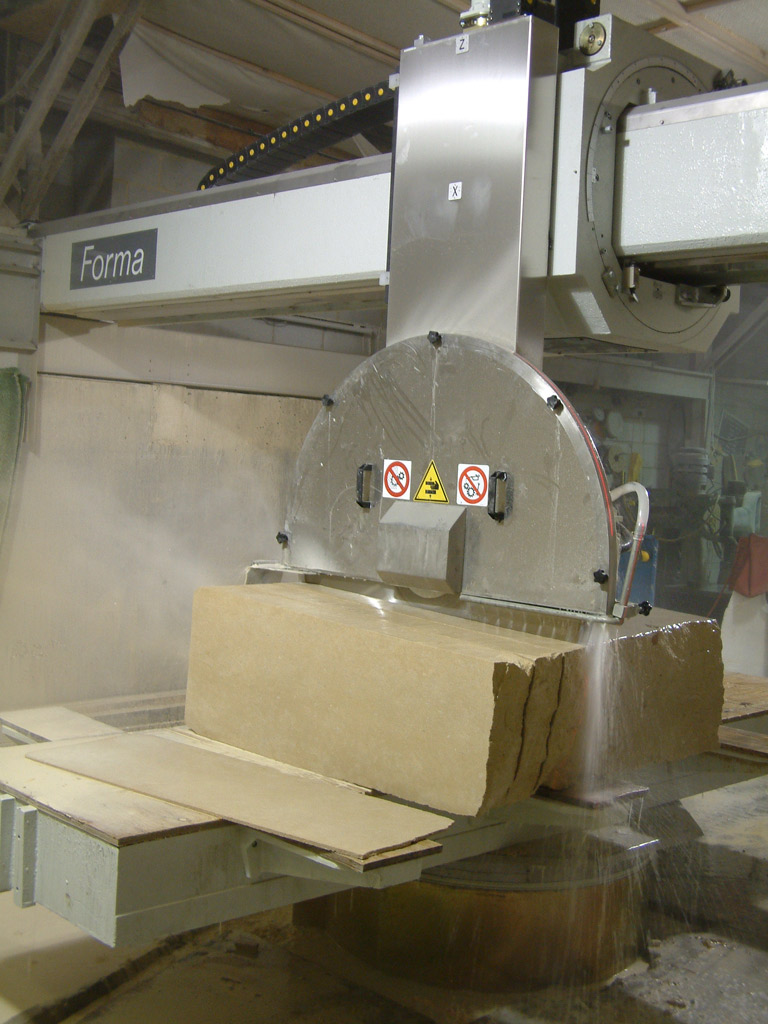

  • 0° – 90° tilting head even for small runs, auto-blockable in position with hydraulic brake.
  • P 55 LX cabinet houses electronic and electrical control / right-left slide, forward-backward bridge movement, head raising/lowering, bench rotation.

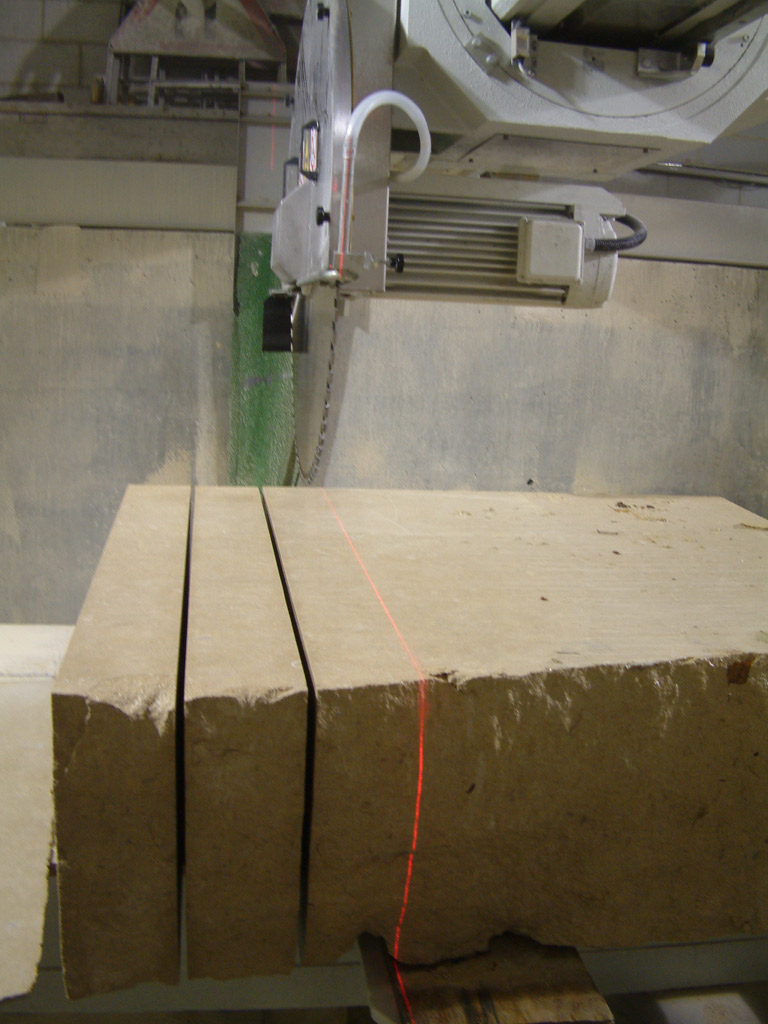

  • Collimatore a raggio laser per facilitare il posizionamento del disco sulla linea di taglio.
  • Laser beam for ease of positioning of the blade on cutting line.
    Bridge mainframe/table in cast iron for stability / minimum vibration/greater machine life.

Main Functions of Controls

  • Automatic axes control with fast reaction; translation of bridge; automatic table rotation.
  • Electronic tilting of blade cutting unit.
  • Single marble run / small increasing granite steps according to programmed depth.
  • Selection of 20 different cutting widths to be repeated up to 99 times.
  • Cutting, and blade head return limit switches self-setting electronically.
  • Beam movement limit switches self-setting.
  • Differential regulation of cut-and-return speed and last cut speed.
  • Automatic bench tilt programming for continuous circular or orthogonal cutting.
  • Through runs or part runs possible.
  • All axes can be moved together to reduce lime wastage.

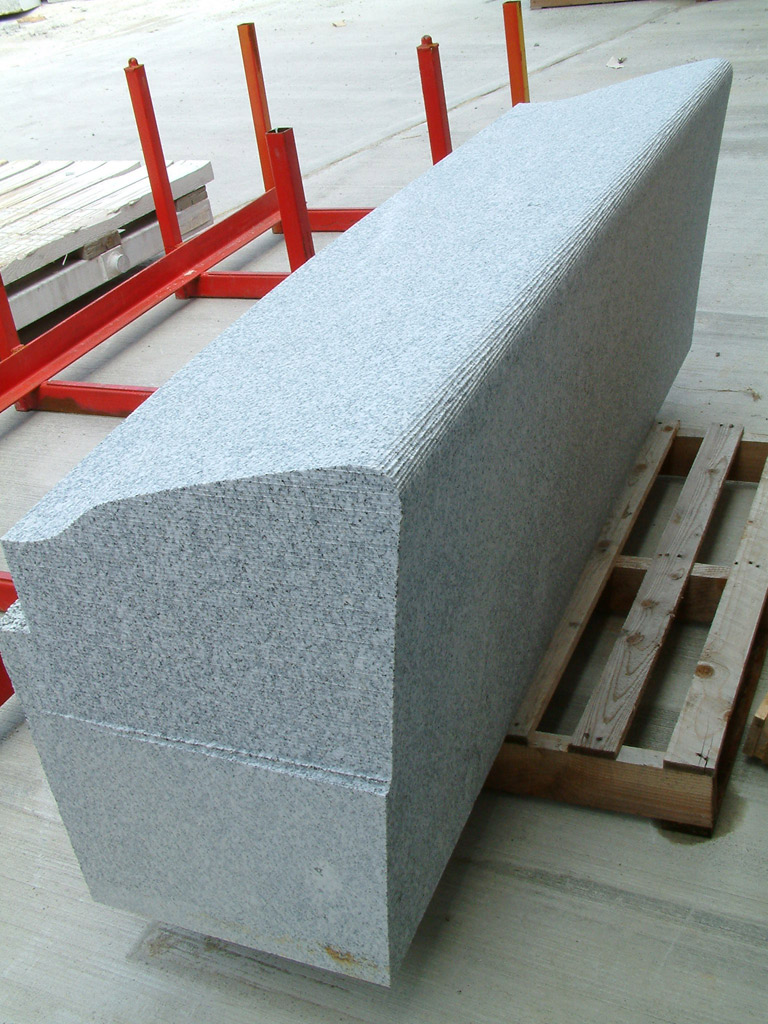

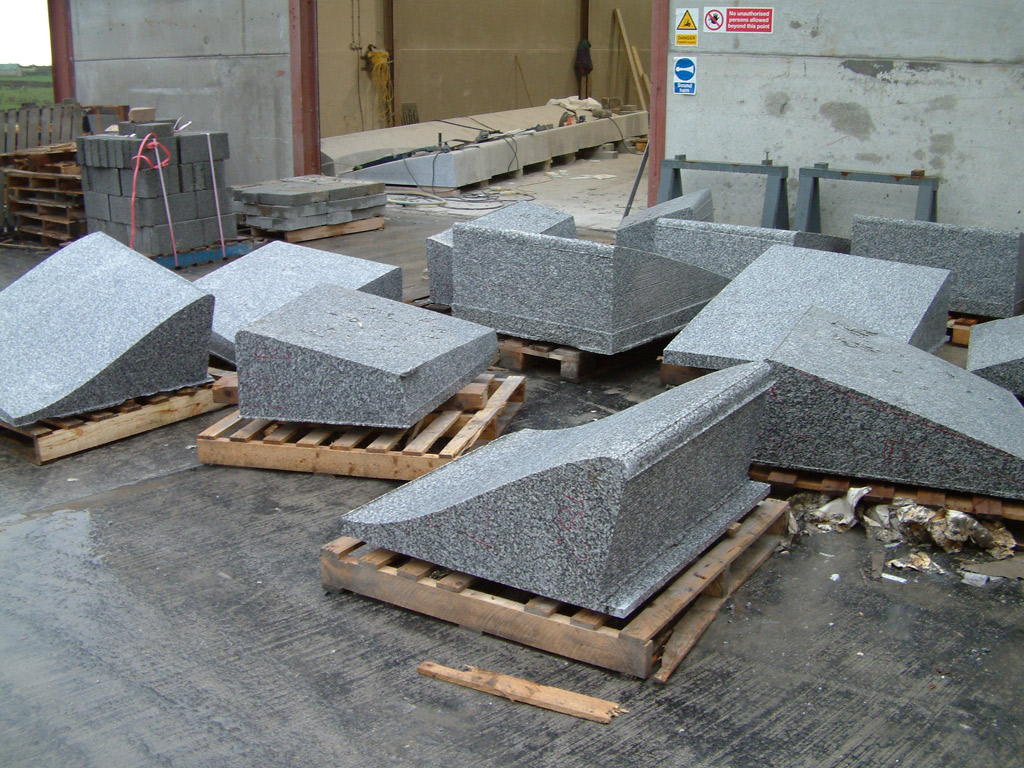

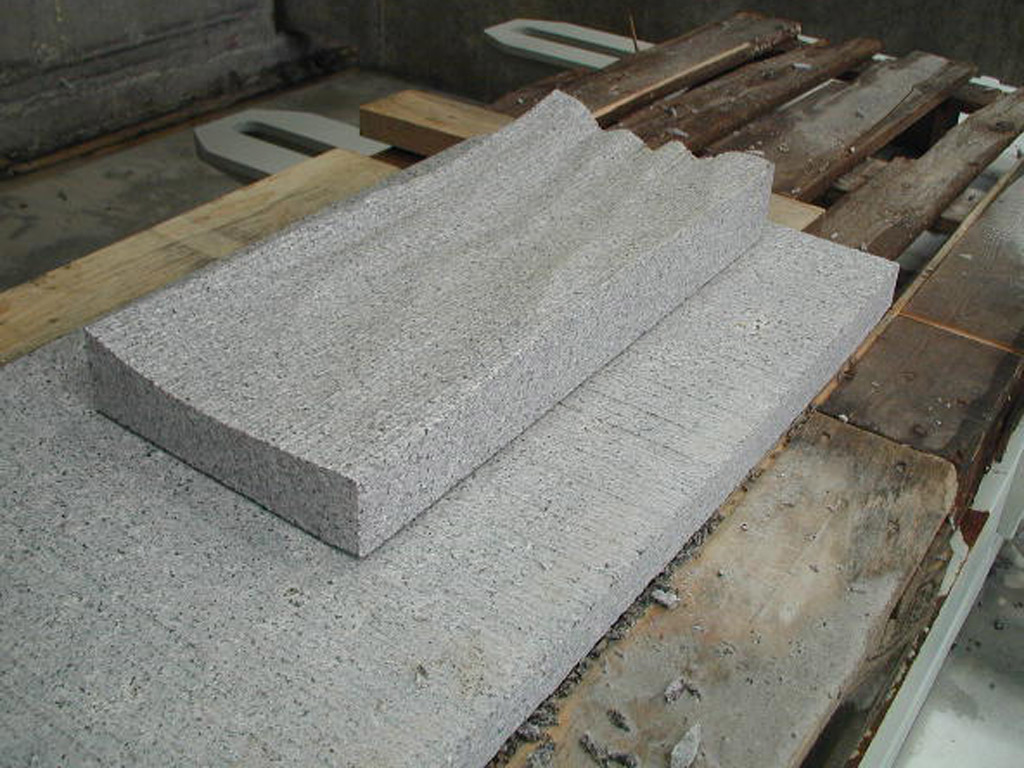

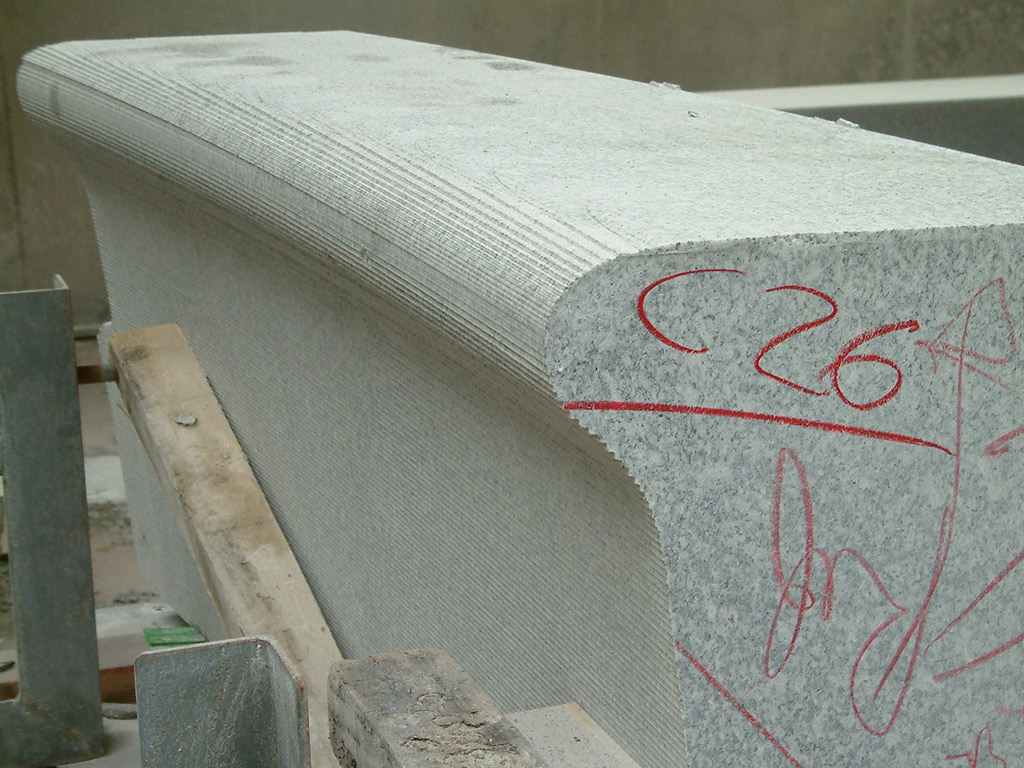

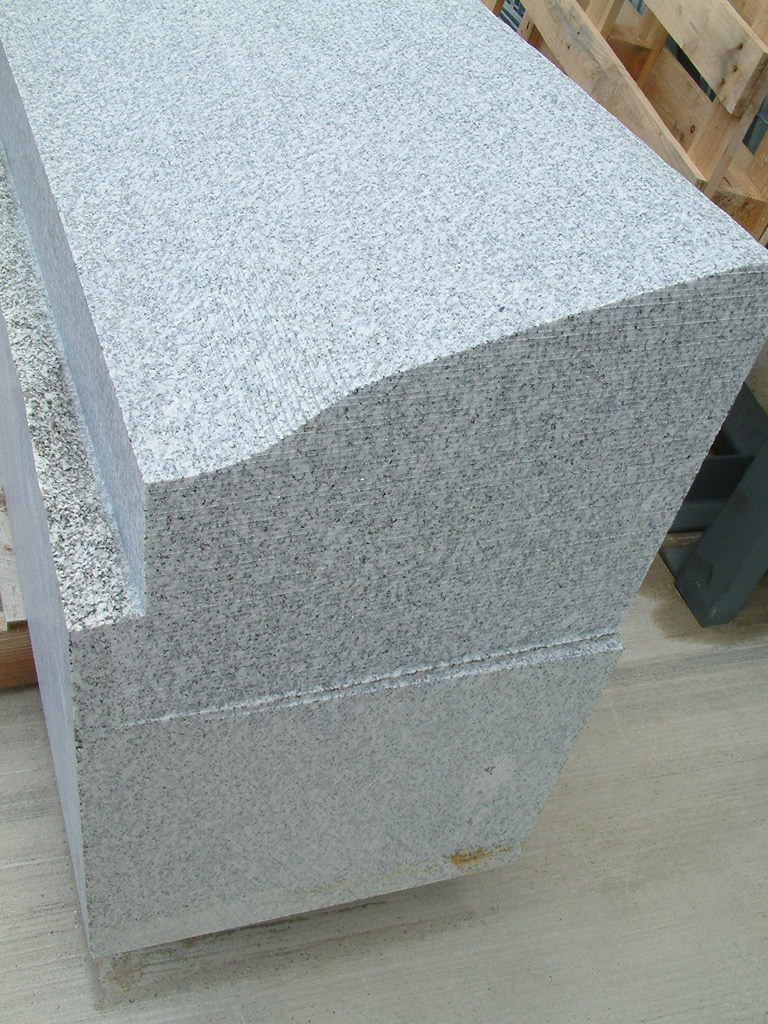

  • Profiles can be set directly from the keyboard; concave/convex arches on rising/descending tilts of any angle.

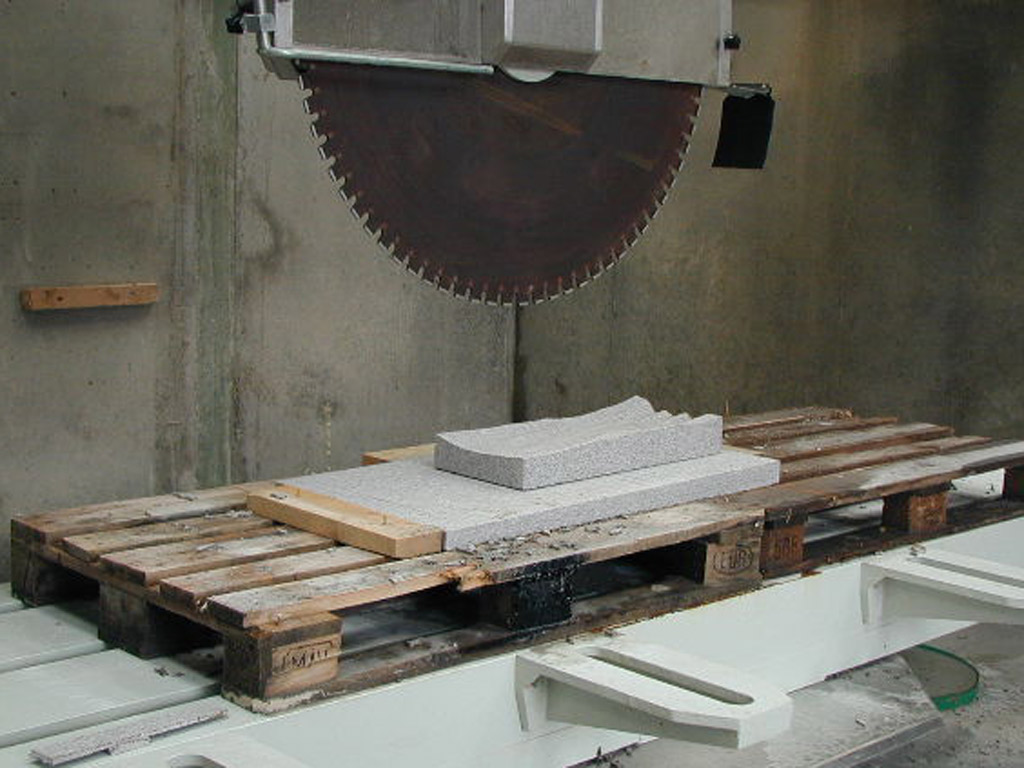

  • Linear and circular profiles for horizontal/vertical axes of the blade head possible.
  • Resident menu cycles: cross-cutting, facing – slab-cutting, concave-convex, shaping, interpolated shaping.
  • Specific prog. with CAD/CAM, converter, and ISO, for profiles and shapes drawn on CAD connected externally in serial RS 232 (optional)

Technical Specifications

Technical Specifications
Blade stroke mm 3700
Bridge translation mm 3600
Blade vertical stroke mm 600
Max. blade diameter mm 1000
Blade shaft diameter mm 60
Blade flange block diameter mm 250
Max. cutting depht mm 310
Table dimensions mm 3500×1800
Blade motor power kW 30
Spindle rotation at 50 HZ rpm 950
Adjustable forward speed m/min 0 – 18
Weight Kg 5800
Standard Equipment
N° 1 Photocell safety barrier
Optional Equipment
Hydraulic titlin table
